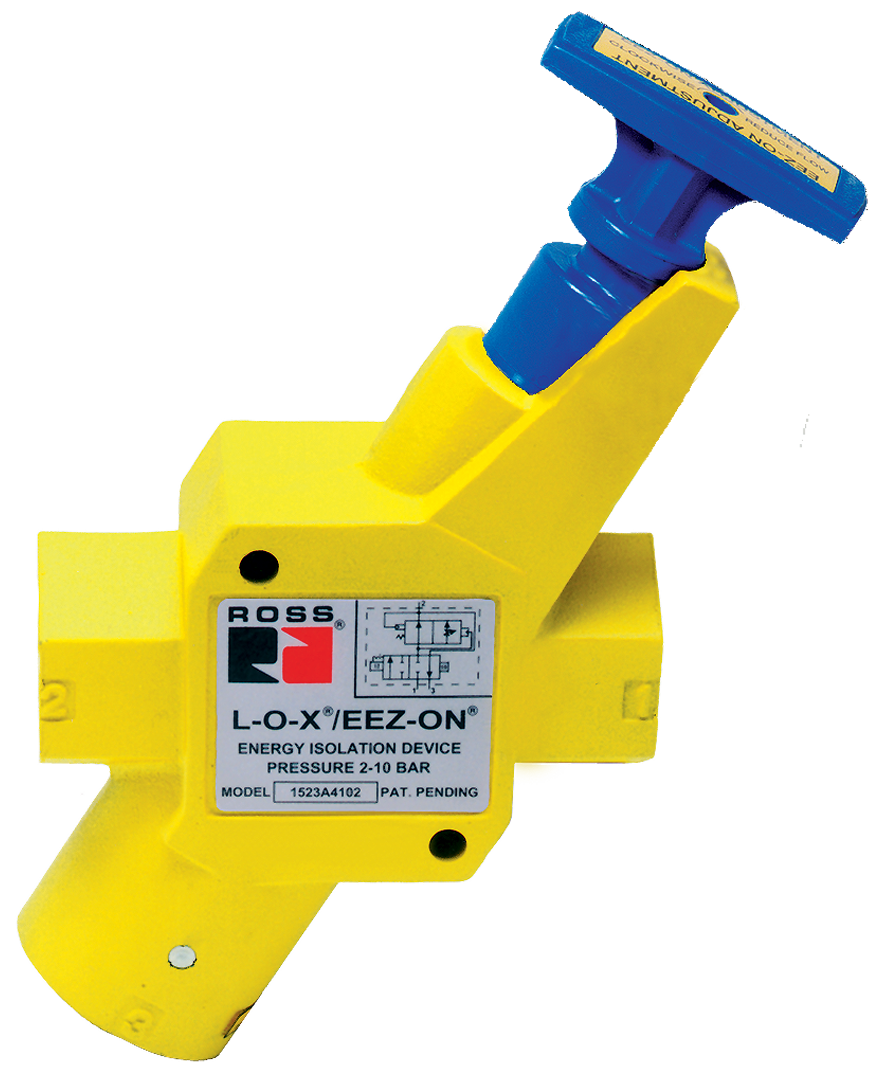

带软启动EEZ-ON 15系列手动锁定LOX阀
Y1523B7112
- 易于识别，黄色主体和蓝色手柄控制开/关位置
- 逐渐重新施加气压可防止设备在启动时快速移动
- 全尺寸排气口（等于或大于供气口）可快速排出下游空气，并为消音器或远程排气管线提供螺纹
- 设计仅允许阀门可锁定在关闭位置
- 氟碳密封件实现轻松操作
- 具有集成传感器接口，可通过视觉弹出指示器或电气压力开关进行压力验证
产品信息
| Series | 15 Series Classic |
| Actuation | Manual |
| Function | 3/2 |
| Soft Start | Included |
| Construction | Spool |
| Mounting | In-line |
| Thread Type | NPT |
| Inlet Size | 1-1/4" |
| Outlet Size | 1-1/4" |
| Exhaust Size | 1-1/4" |
| Body Size | 1" |
| Height | 10.76 in (273 mm) |
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 0 to 150 psig (0 to 10 bar) |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Stainless Steel |
| Seal Material | Fluorocarbon |
| Safety Category | Category 1 |
| PL Rating | PL c |
| DGUV Certification | No |
| CE Certification | No |
| EAC Declaration | Yes |
| CSA/UL Certification | No |
+
