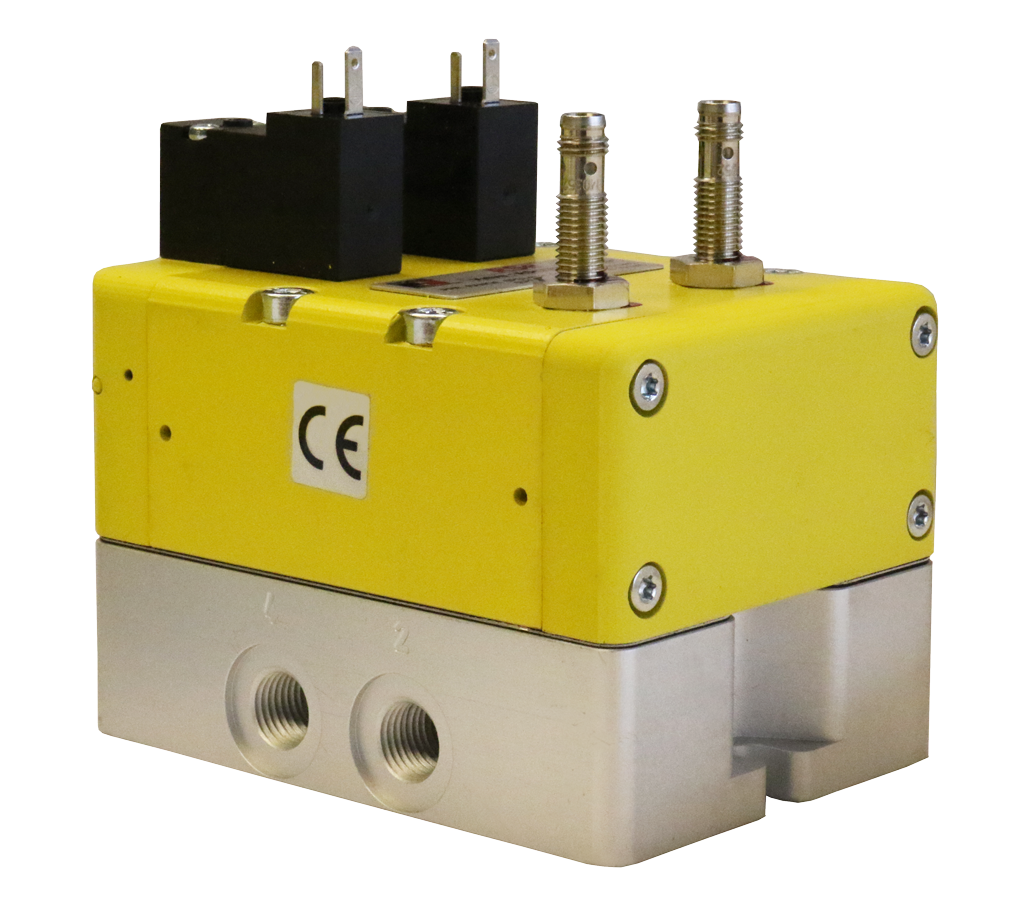

RSe系列双阀
RSe3ENA10A31P
- 与适当的安全控制系统一起使用时，冗余控制可以实现 Cat 4，PL e
- RSe 系列中的每个单阀都配备了用于外部监控的 PNP 接近传感器。
- 在 RSe 系列阀门的每次启动和停用时监控这两个传感器，可实现高达 99% 的诊断覆盖率
- 冗余滑阀式阀门带有两个电磁线圈，必须同时操作才能驱动阀门。此外，每个阀芯都有一个单独的接近传感器，该传感器作为 PNP 型传感器进行接线，用于位置感应。
- 通过电磁线圈断电自动复位
- 底座安装，带 G或 NPT 管螺纹。阀门两侧均有进气口和排气口，便于现场安装接线
- SISTEMA 库可供下载
产品信息
| Series | RSe |
| Valve Function | Dual 3/2 Single Solenoid |
| Construction | Spool and Sleeve |
| Actuation | Electrical |
| Soft Start | Not Included |
| Lockout | Not Included |
| Monitoring | External |
| Feedback | Proximity Sensors |
| Reset | Automatic |
| Voltage | 24 VDC |
| Thread Type | NPT |
| Inlet Size | 1/8" |
| Outlet Size | 1/8" |
| Exhaust Size | 1/8" |
| Basic Size | 1/8" |
| Ports 1-2 Flow | 0.44 Cv (433 Nl/min) |
| Ports 2-3 Flow | 1 Cv (984 Nl/min) |
| Feedback Rating | <23mA |
| Power Consumption | 15 watts |
| Solenoid Connection | EN 175301-803 Form C |
| Feedback Connection | M8 |
| Operating Pressure Max | 145 psi (10 bar) |
| Pilot Supply | Internal/External |
| Height | 3.67 in (93.2 mm) |
| Length | 3.97 in (100.8 mm) |
| Width | 2.96 in (75.0 mm) |
| Weight | 2.9 lb (1.3 kg) |
| Mounting | Base Mounted |
| Ambient Temperature Range | 40 to 120 F (4 to 50 C) |
| Media Temperature Range | 40 to 120 F (4 to 50 C) |
| Flow Media | Compressed, filtered air according to ISO 8573-1 Class 7:4:4 |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Stainless Steel |
| Seal Material | Buna-N |
| Safety Category | Category 4 |
| PL Rating | PL e |
| Safety Integrity Level | SIL 3 |
| DGUV Certification | pending |
| CE Certification | Yes |
| EAC Declaration | Yes |
| CSA/UL Certification | Yes |
+
