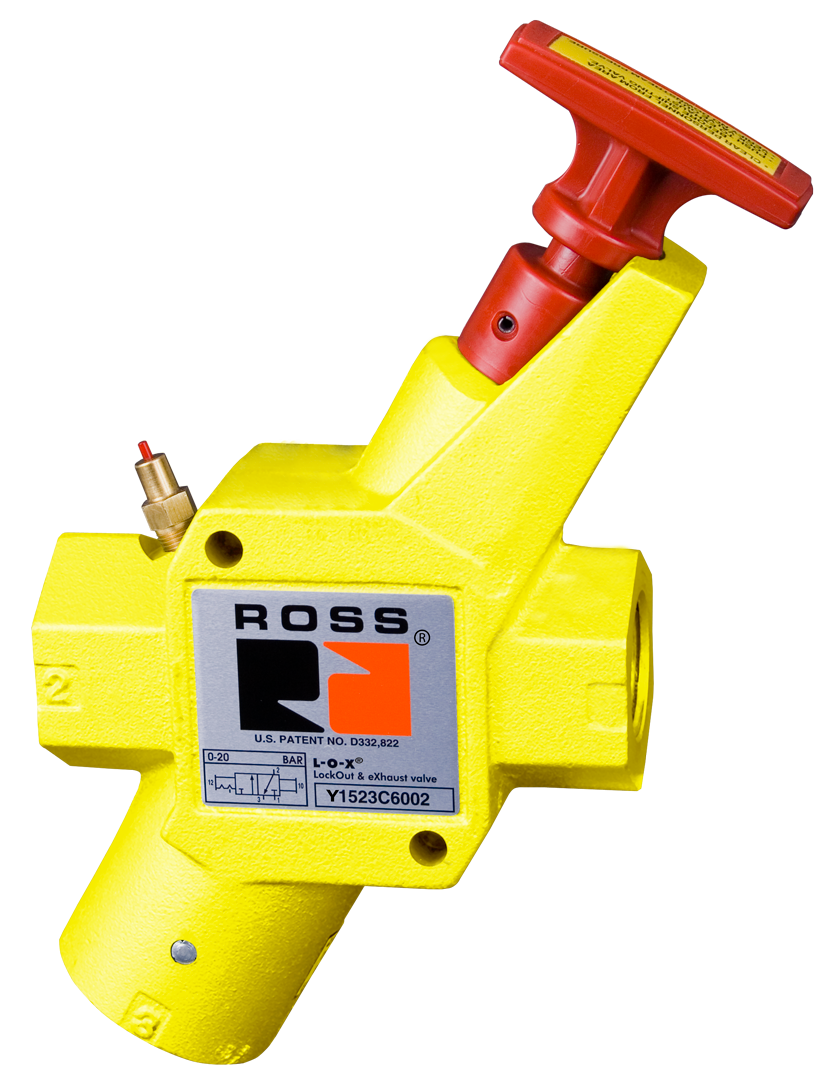

15系列LOX阀
YD1523C3002
- 易于识别，黄色主体和红色手柄控制开/关位置（非不锈钢）
- 全尺寸排气口（等于或大于供气口）快速排出下游气体，可接消音器或远程排气管线
- 设计仅允许阀门锁定在关闭位置
- 氟碳密封件实现轻松操作
- 具有集成传感器接口，可通过视觉弹出指示器或电气压力开关进行压力验证
产品信息
| Series | 15 Series Classic |
| Actuation | Manual |
| Function | 3/2 |
| Soft Start | Not Included |
| Construction | Spool |
| Valve Body Material | Cast Aluminum |
| Thread Type | G |
| Inlet Size | 3/8" |
| Outlet Size | 3/8" |
| Exhaust Size | 3/4" |
| Body Size | 1/2" |
| Mounting | In-line |
| Length | 2.1 in (53.4 mm) |
| Width | 8.20 in (208.3 mm) |
| Height | 10.47 in (265.8 mm) |
| Weight | 2.0 |
| Cv (1-2) | 4.74 |
| Cv (2-3) | 2.91 |
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 0 to 200 psig (0 to 14 bar) |
| Poppet/Spool Material | Stainless Steel |
| Seal Material | Fluorocarbon |
| Safety Category | Category 1 |
| PL Rating | PL c |
| DGUV Certification | No |
| CE Certification | No |
| EAC Declaration | Yes |
| CSA/UL Certification | No |
+
