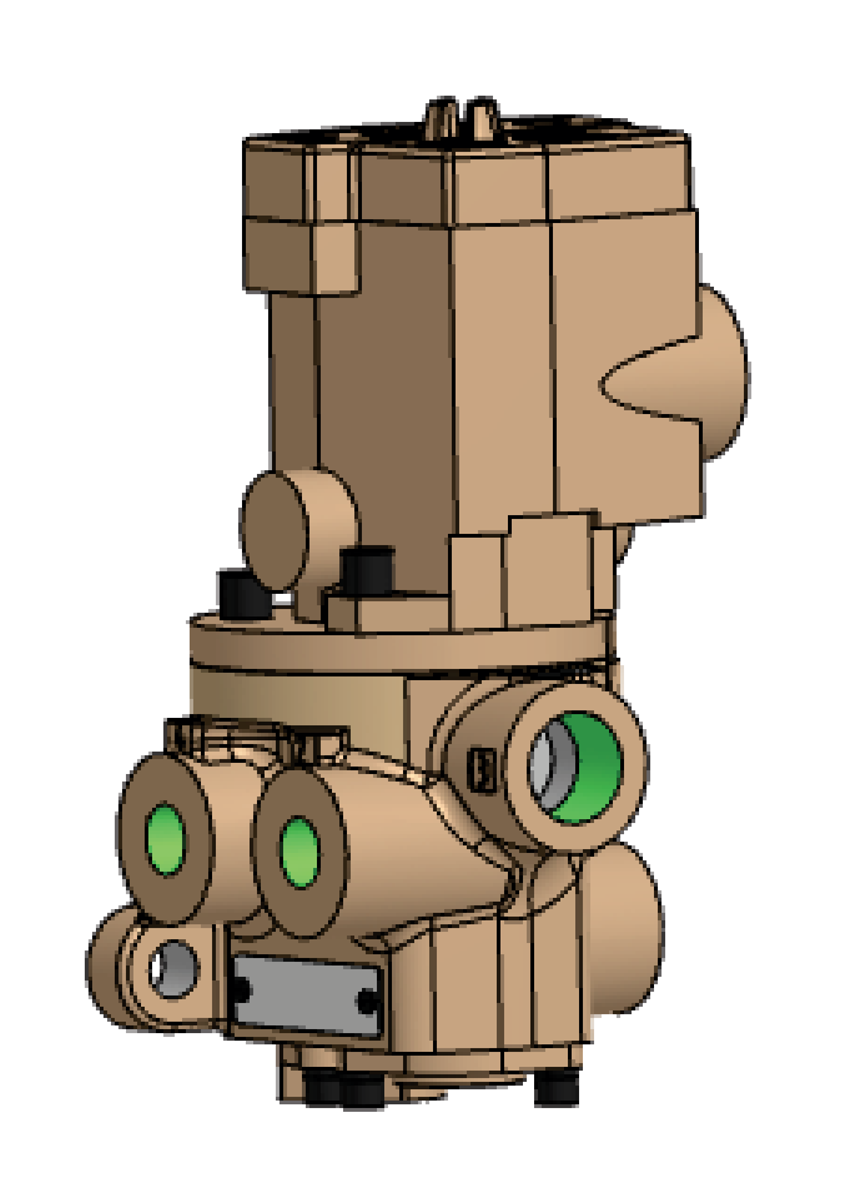

经典27系列
2776B5001W
- 1/4” 至 2 1/2” 接口尺寸
- 提升阀
- 管式安装
- 高流速
- 内先导或外先导；易于现场转换，与外部先导电源一起使用
- 在阀门的整个使用寿命内保持一致的响应时间
产品信息
| Valve Type | Directional Control |
| Series | 27 |
| Application | General |
| Actuation | Electrical |
| Voltage | 24 VDC |
| Function | 4/2 Single Solenoid |
| Default Position | Normally Open |
| Return | Spring |
| Thread Type | NPT |
| Inlet Pipe Size | 3/4" |
| Outlet Pipe Size | 3/4" |
| Exhaust Pipe Size | 1" |
| Construction | Poppet |
| Mounting | Inline |
| Connection | Hardwired |
| Pilot Type | Internal/External |
| Manual Override | Non-locking |
| Size | 3/4" |
| Cv (1-2) | 7 |
| Cv (1-4) | 7 |
| Cv (2-3) | 9.3 |
| Cv (4-3) | 9.3 |
| Duty Rating | Continuous Duty |
| Power Consumption | 20 watts |
| Ambient Temperature | 40 to 120 F (4 to 50 C) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 15 to 150 psig (1 to 10 bar) |
| Pilot Supply Minimum | equal to or greater than inlet pressure |
| Length | 5.15 in (131 mm) |
| Width | 4.63 in (118 mm) |
| Height | 8.94 in (227 mm) |
| Weight | 5.3 lb (2.4 kg) |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Acetal, Stainless Steel |
| Seal Material | Buna-N |
+
