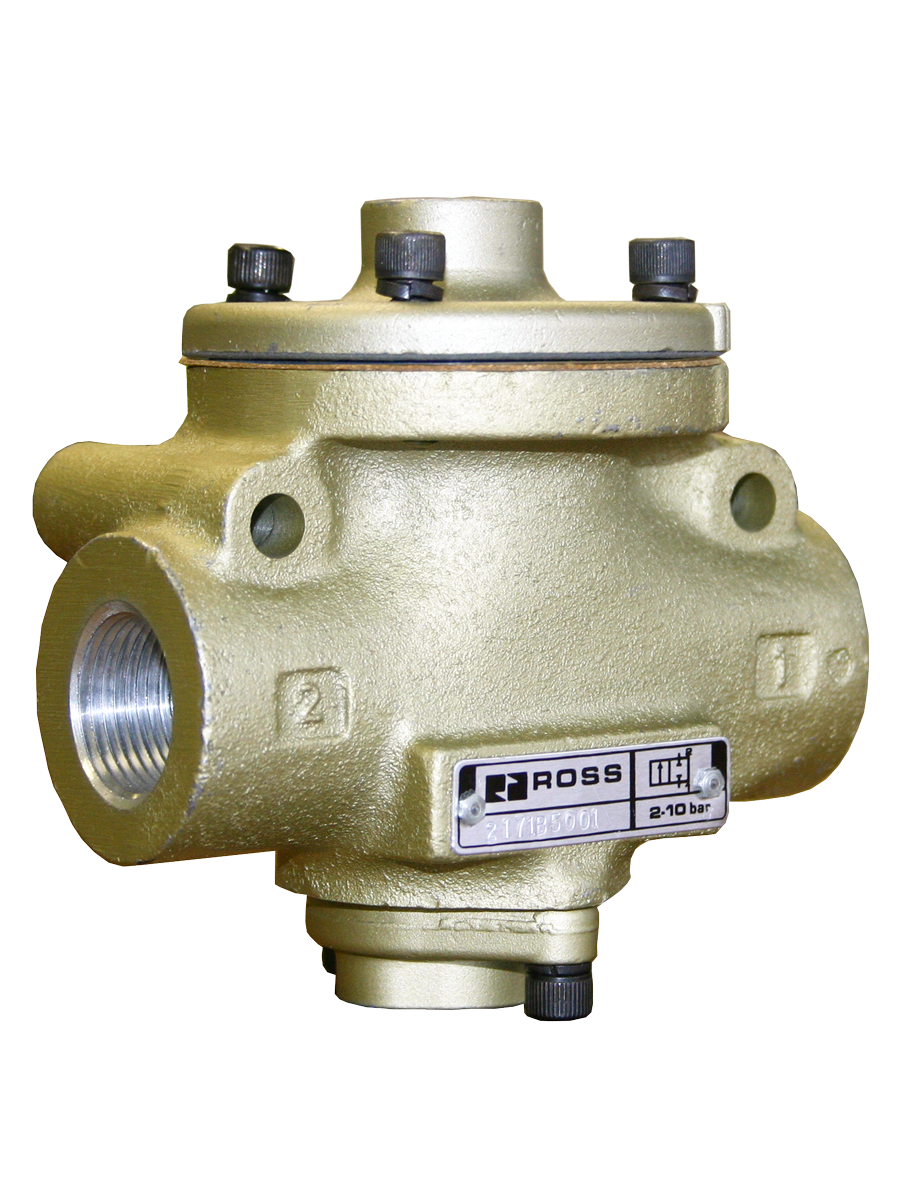

经典27系列
2752A5001
- 1/4” 至 2 1/2” 接口尺寸
- 提升阀
- 管式安装
- 高流速
- 内先导或外先导；易于现场转换，与外部先导电源一起使用
- 在阀门的整个使用寿命内保持一致的响应时间
产品信息
| Valve Type | Directional Control |
| Series | 27 |
| Application | General |
| Actuation | Pneumatic |
| Function | 2/2 Single Pilot |
| Default Position | Normally Open |
| Return | Spring |
| Thread Type | NPT |
| Inlet Pipe Size | 3/4" |
| Outlet Pipe Size | 3/4" |
| Construction | Poppet |
| Mounting | Inline |
| Pilot Type | External |
| Size | 3/4" |
| Avg Cv | 7.3 |
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 15 to 150 psig (1 to 10 bar) |
| Pilot Supply Minimum | equal to or greater than inlet pressure |
| Length | 4.56 in (116 mm) |
| Width | 3.11 in (79 mm) |
| Height | 4.42 in (112 mm) |
| Weight | 2.0 lb (0.9 kg) |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Acetal, Stainless Steel |
| Seal Material | Buna-N |
+
