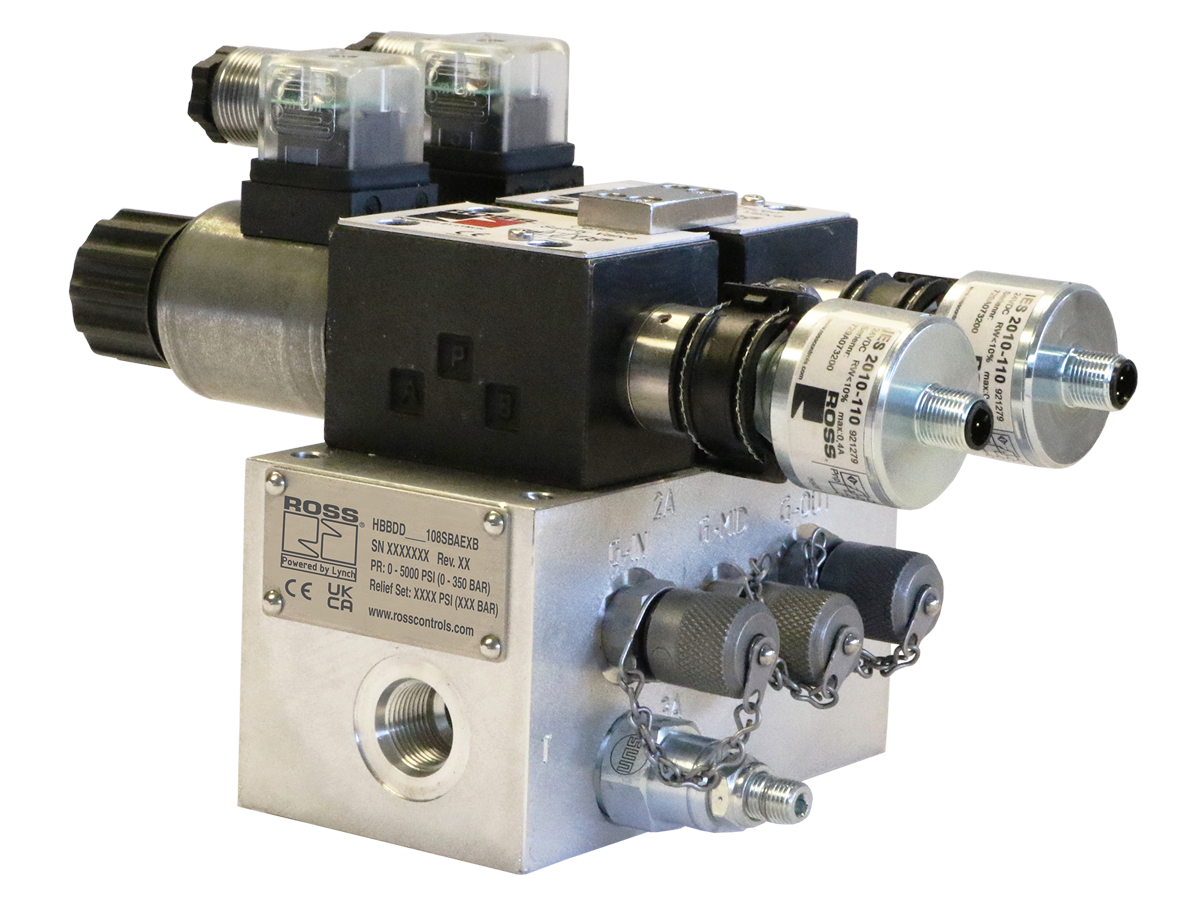

HBBDD55108SBAEXB
- HBB 系列系统中的每个主阀都配备了感应位置开关。
- 这些开关的监控由电气安全控制系统完成。
- 冗余滑阀结构设计
- 入口处配备防拆安全阀
- 拆卸时需要专用防拆工具
- D03 上带有 SAE 螺纹端口的内联安装& D05 尺寸。 D07 尺寸的法兰端口。
产品信息
| Safety Function | Block & Bleed |
| Valve Type | Directional Control |
| Series | HBB Series |
| Construction | Redundant Spool |
| ISO Size | D03 |
| Port Size | SAE-8 |
| Length | 10.03 in (254.8 mm) |
| Length (mm) | 254.8 |
| Width | 5.38 in (136.5 mm) |
| Width (mm) | 136.5 |
| Height | 6.19 in (157.3 mm) |
| Height (mm) | 157.3 |
| Weight | 22.7 lb (10.3 kg) |
| Weight (kg) | 10.3 |
| Flow Rate | 0 to 10 gpm |
| Mounting | Base Mount |
| Actuation | Electrical |
| Valve Function | Dual 3/2 Direct Single Solenoid |
| Monitoring | External |
| Return | Spring |
| Voltage | 24 VDC |
| Duty Cycle | Continuous Duty |
| Power Consumption | 30 watts |
| Solenoid Connection Type | EN 175301-803 Form A |
| Inductive Position Switch | PNP |
| Switch Current Consumption (Max) | 400mA |
| Ambient Temperature | -4 to 160 F (-20 to 71 C) |
| Ambient Temperature (Celsius) | -20 to 71 |
| Media Temperature | -4 to 140 F (-20 to 60 C) |
| Media Temperature (Celsius) | -20 to 60 |
| Operating Pressure (Max) | 5000 psi (344 bar) |
| Operating Pressure (Max bar) | 344 |
| Flow Media | Mineral Oil HLP, HL-DIN 51524; Vegetable Oil HETG - VMDA 24568 |
| Valve Body & Manifold Material | Ductile Iron |
| Spool Material | Steel |
| Seal Material | Buna-N |
+
