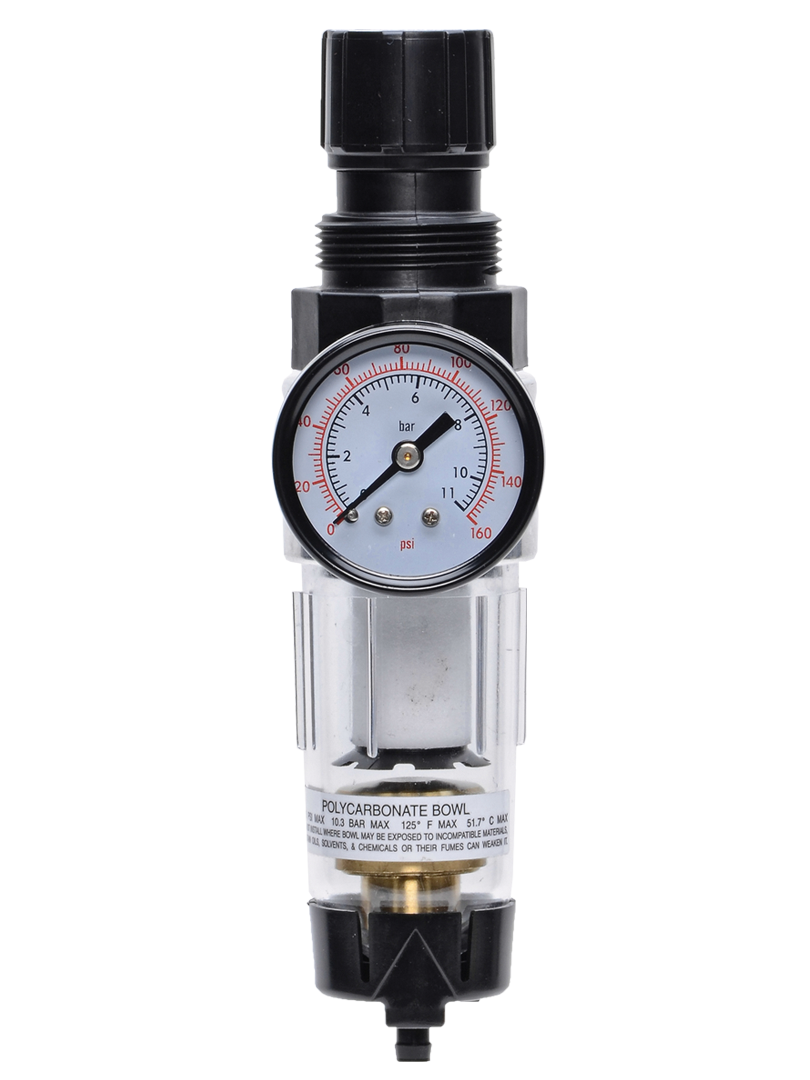

Miniature Series
5321C2041
- Filter and regulator consolidated in a single assembly
- Inline mounting
- High-strength polycarbonate plastic bowl, or aluminum bowl
- Automatic drain, or manual drain
- Piston-type regulator
- Self-relieving regulator; non-relieving optional
- Pressure gauge
- Regulator adjusting knob removable for tamper-resistance
Need Help? No Problem!
Customer Service
+86 (021) 69157942
Technical Service
+86 (021) 69157942
Need Help? No Problem!
Customer Service
+86 (021) 69157942
Technical Service
+86 (021) 69157942
Product Information
| PORT SIZE | 1/4 |
| PORT THREAD | NPTF |
| PORT TYPE | Threaded Ports |
| DRAIN TYPE | Automatic |
| FILTER TYPE | 5 µm |
| FILTER MATERIAL | Polyethyene |
| BOWL TYPE | Metal |
| GAUGE psig (bar) | 0 - 160 (0 - 11) |
| CONSTRUCTION | Diaphragm |
| RELIEVING | Self-Relieving |
| ADJUSTMENT | Knob |
| MOUNTING | Inline |
| MAXIMUM FLOW | 24 scfm |
| FLOW MEDIA | Compressed Air |
| OPERATING PRESSURE RANGE | 0 to 200 psig (0 to 14 bar) |
| REGULATED PRESSURE RANGE psig (bar) | 0 - 100 (0 - 6.9) |
| MEDIA TEMPERATURE RANGE | 40 to 150 F (4 to 66 C) |
| AMBIENT TEMPERATURE RANGE | 40 to 150 F (4 to 66 C) |
+
