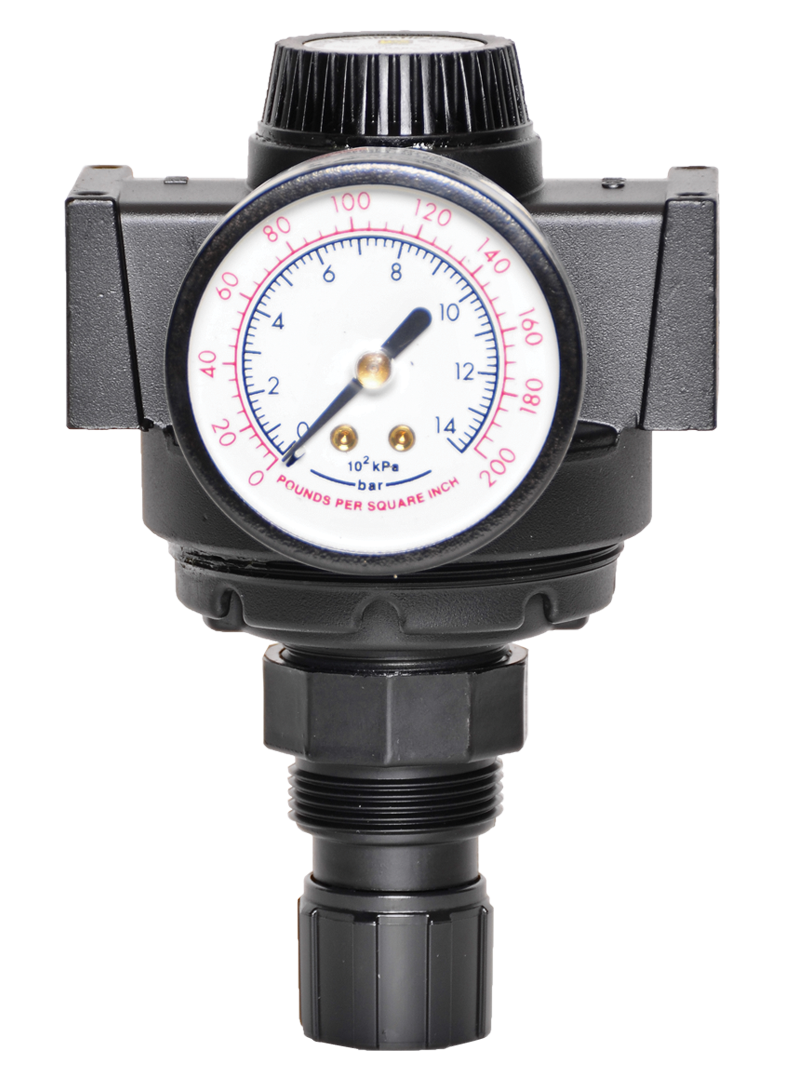

Full-Size Precision Series
5214C3018
- Modular mounting
- Diaphragm construction
- Self-relieving
Need Help? No Problem!
Customer Service
+86 (021) 69157942
Technical Service
+86 (021) 69157942
Need Help? No Problem!
Customer Service
+86 (021) 69157942
Technical Service
+86 (021) 69157942
Product Information
| PORT SIZE | 3/8 |
| PORT THREAD | NPT |
| RELIEVING | Self-Relieving |
| FLOW OPTION | Standard |
| ADJUSTMENT | Knob |
| GAUGE psig (bar) | 0-200 (0-13.8) |
| PORT TYPE | Threaded Ports |
| CONSTRUCTION | Diaphragm |
| MOUNTING | Modular |
| PANEL MOUNT NUT | Not Included |
| MAXIMUM FLOW | 90 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 300 psig (20.7 bar) |
| REGULATED PRESSURE RANGE psig (bar) | 15 - 250 (1 - 17.2) |
| AMBIENT TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
| MEDIA TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
+
Full-Size Precision Series
